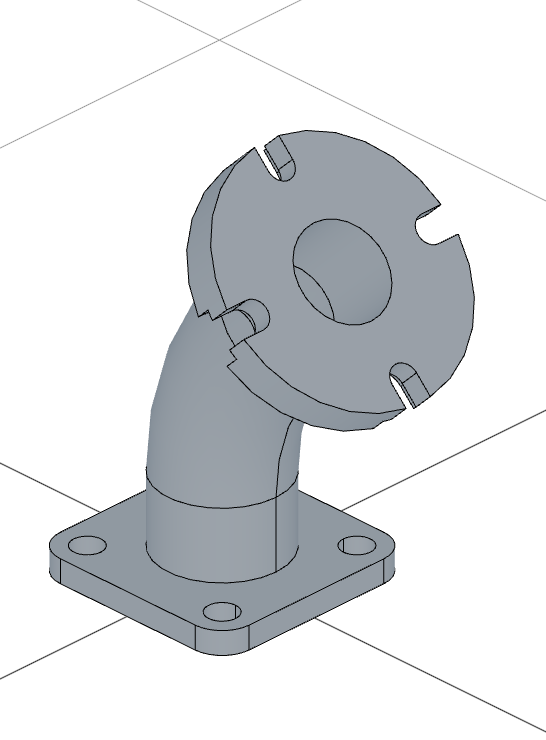

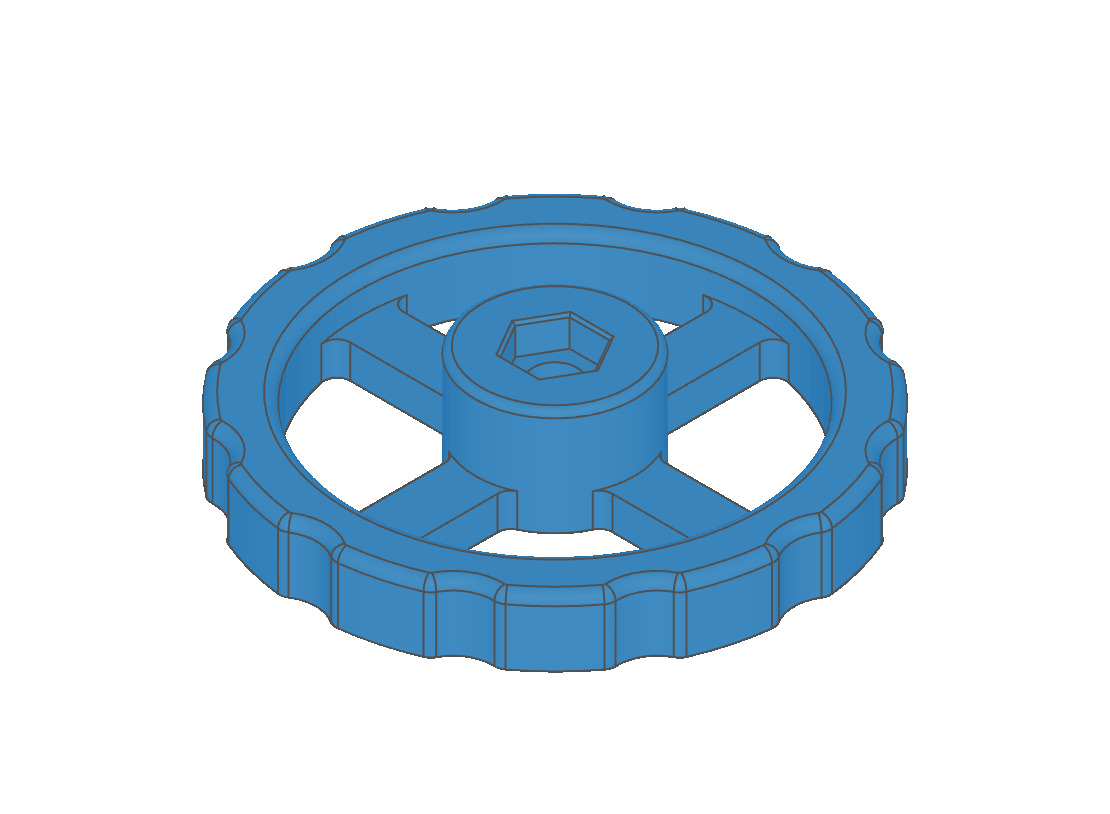

Tutorials

Lantern

Build a hexagonal lantern from scratch. Covers polygons, draft extrusions, shelling, pattern cuts, lofting, and revolving.

Ice Cube Tray

Build a parametric ice cube tray. Covers draft cuts, filleting, linear patterns, shelling, edge selection, and sweeps.

Upper Alignment Clamp

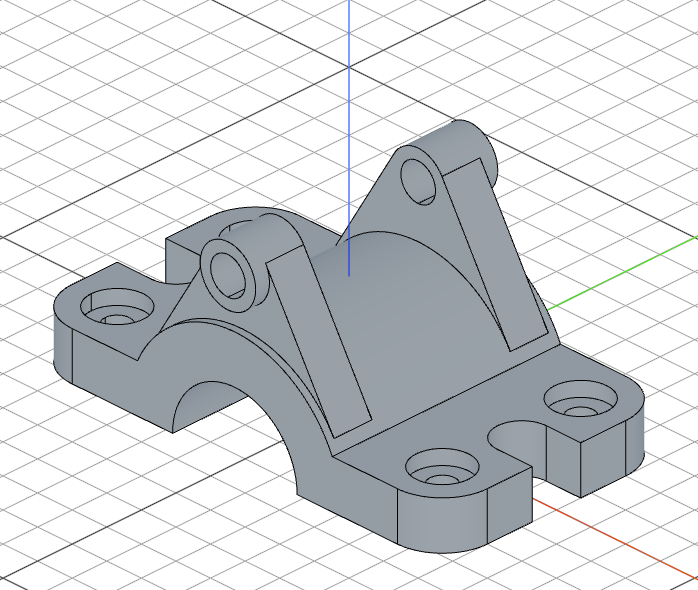

Build an upper alignment clamp. Covers tangent lines and arcs, geometric constraints, projected guide geometry, symmetric extrusions, drilling, and mirror repeats.

Gear Housing

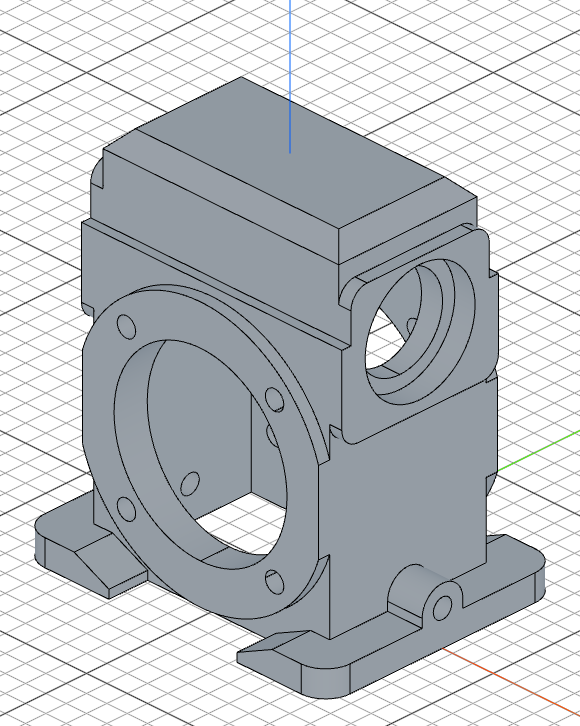

Build a gear housing. Covers filleting, angled chamfers, multi-level extrusions, draft cuts, arc profiles, rounded rectangles, drilling, counterbores, circular copy patterns, and mirror symmetry.

CSWP Sample Exam

Build the parametric part from the SolidWorks CSWP sample exam. Covers arc/offset geometry, reference planes, hollow pipes, chamfers, counterbores, face projection, and edge selection.

Grooved Box

Build a grooved storage box. Covers rounded rectangles, shelling, internal edge fillets, face intersection sketches, thin symmetric extrusions, and linear repeat patterns.

Flange With Notch

Build a flange with a notch. Covers tangent lines and arcs, guide geometry, mirror symmetry, thin-walled extrusions, offset reference planes, and counter bores.

Hinge Bracket

Build a hinge bracket. Covers reusable path sketches, thin symmetric extrusions, edge projection, face-based sketching, curvature-based face selection, chamfering, shelling, and projected ribs.

L-Stub

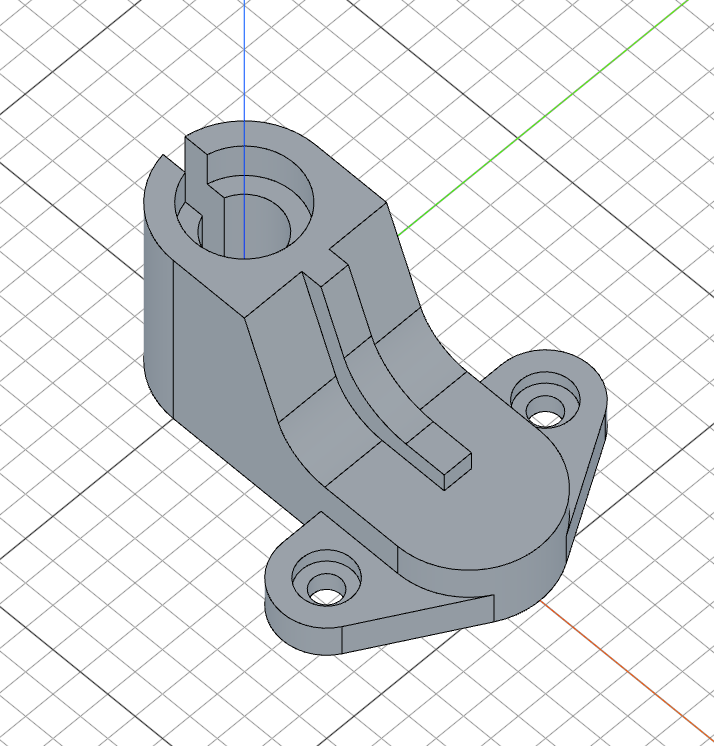

Build an L-shaped stub bracket. Covers compound profiles with subtract/fuse, thin symmetric cuts driven by guide lines, tangent geometry with selective mirror exclusion, and projecting internal cut faces into a sketch.

Drafted Box

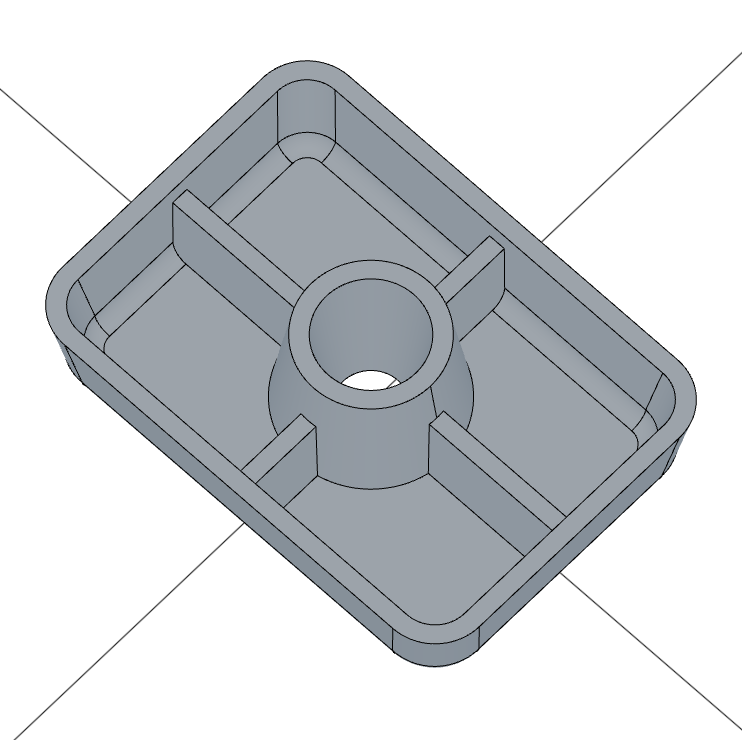

Build a shelled box with a drafted central pipe and four support ribs. Covers drafted extrudes and cuts, plane offsets, shelling with face filters, reusable sketches with guide-driven angle lines, extruding up to a target face, and circular patterns.

3D Printable Desk Organizer

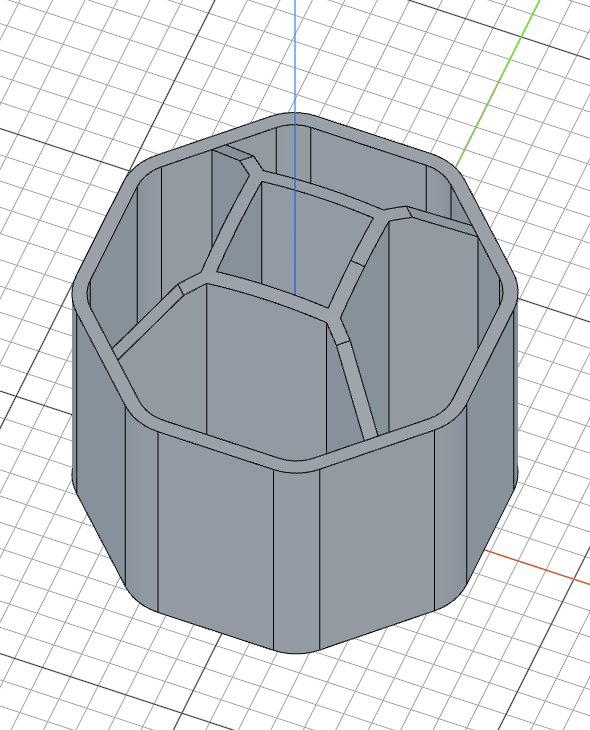

Build a four-compartment octagonal desk organizer. Covers circumscribed polygons, sketch-level rotate and fillet, chamfering and shelling by extrude faces, multi-loop sketches via offset, ribs on a rotated reference plane, circular patterning, and a thin revolve trim cut.

Fork

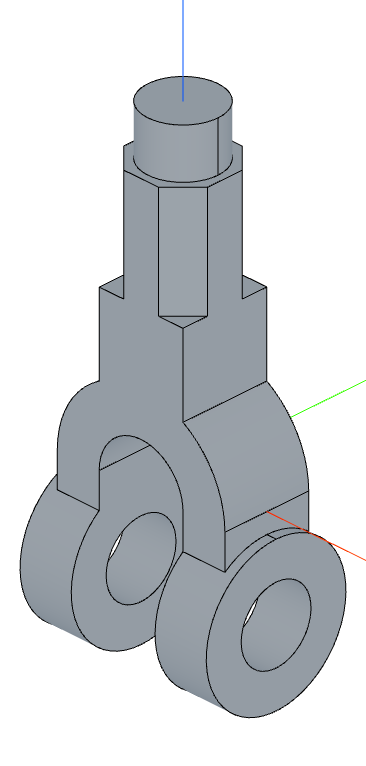

Build a forked yoke with side-mounted bosses and a stepped column. Covers offset arc profiles, sketch-local mirror axes, side bosses with through-holes, and using thin annular cuts to leave central features standing.
