Split

Split cuts a sketch edge in two at the point you click. The two pieces stay joined at the split point, which becomes a vertex you can drag, dimension or build a notch from.

In the viewport

1. Click Split on the sketch toolbar (shortcut sp). It sits in the group with Fillet and Offset. There is no dialog: the tool arms and waits for a click.
2. Click an edge where it should split. The edge is cut at the click, and a toast reports what was written: Split l1 into l1 and l3, or Turned c1 into an arc for a circle.
3. The tool stays armed, so click the next edge for the next split. Esc leaves the tool.

The tool does not write a split() call. It rewrites the source: the entity's statement keeps the first piece under its old variable name, so every .start() and .center() reference to it stays valid; a new const for the second piece is inserted right after it, under the next free name; and a coincident(first.end(), second.start()) is appended to the sketch, which is the junction. Argument expressions you did not touch stay verbatim: line([0, 0], [w, h]) split at x = 10 becomes line([0, 0], [10, 0]) and line([10, 0], [w, h]).

The split is a plain edit. Undo reverts it, and the pieces are drawn geometry like any other: drag them, dimension them, fillet them or delete one of them.

The code behind it

Only the constraints the tool had to touch changed: the corner coincident and the plate length moved their .end() to the second piece, horizontal was copied onto it, and the junction coincident was appended. The last dimension is not the tool's: a split adds one degree of freedom (the split point can slide along the edge), so the DOF readout goes up by one until you dimension the point.

plate.part.js

import { sketch, line, circle } from 'fluidcad/core';
import { coincident, horizontal, vertical, fix, distance, diameter } from 'fluidcad/constraints';

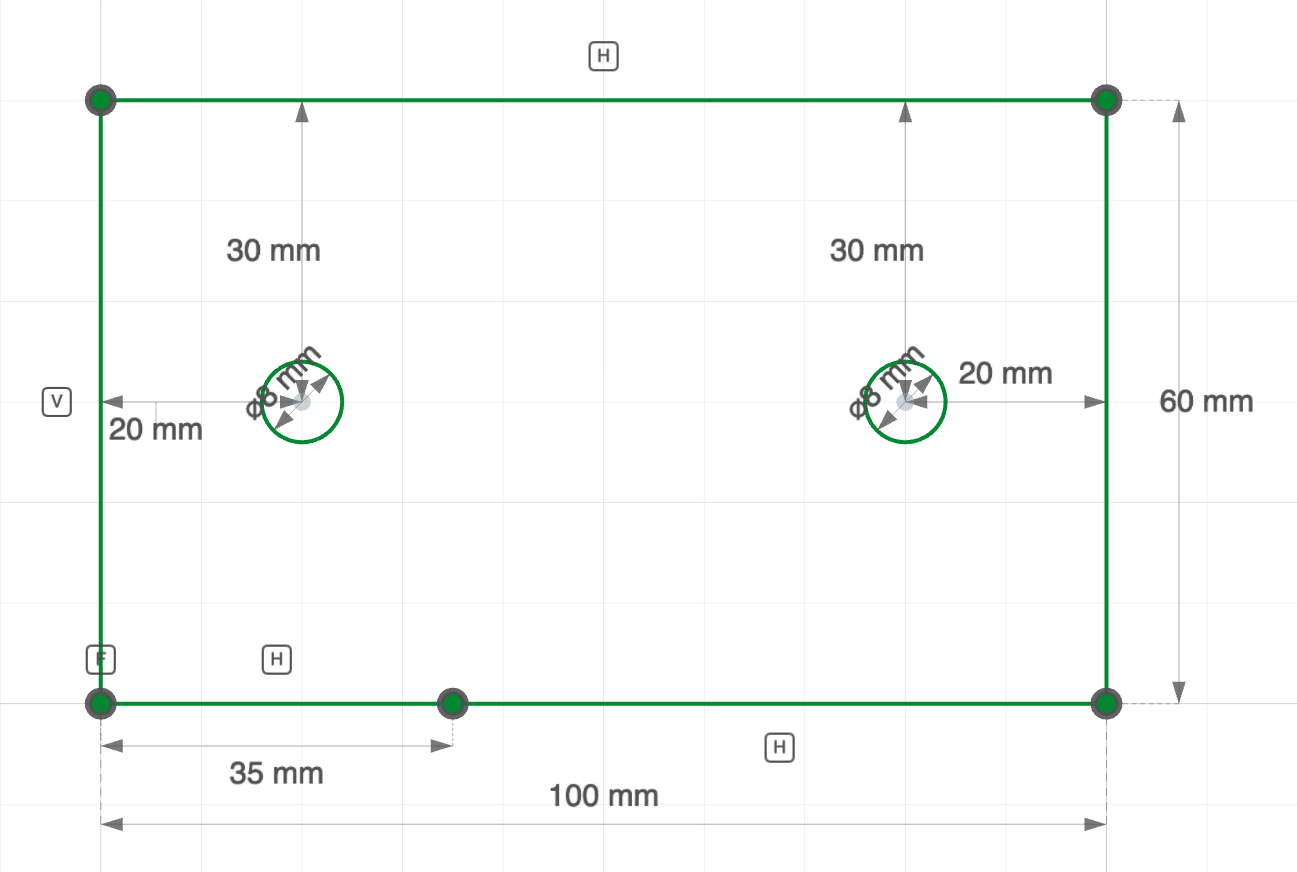

// A mounting plate, 100 × 60, with two screw holes. Its bottom edge was
// split with the Split tool so a cable notch can be cut from that point in
// the next feature. This is the code the tool left behind.
sketch("xy", () => {
    // Before the split this was one statement: line([0, 0], [100, 0]).
    // The tool kept the first piece under the old name and inserted the
    // second piece right after it, under the next free line name. The
    // untouched [0, 0] and [100, 0] are copied verbatim; the split point is
    // where you clicked.
    const bottom = line([0, 0], [35, 0]);
    const l1 = line([35, 0], [100, 0]);
    const right = line([100, 0], [100, 60]);
    const top = line([100, 60], [0, 60]);
    const left = line([0, 60], [0, 0]);
    // The corner coincident used to read bottom.end(): every .end()
    // reference moved to the second piece.
    coincident(l1.end(), right.start());
    coincident(right.end(), top.start());
    coincident(top.end(), left.start());
    coincident(left.end(), bottom.start());
    horizontal(bottom);
    // horizontal was copied onto the second piece, so both stay flat.
    horizontal(l1);
    vertical(right);
    horizontal(top);
    vertical(left);
    // .start() references stay on the first piece.
    fix(bottom.start(), [0, 0]);
    // The plate length is still dimensioned end to end: the .end() moved.
    distance(bottom.start(), l1.end(), 100);
    distance(right.start(), right.end(), 60);
    const h1 = circle([20, 30], 8);
    const h2 = circle([80, 30], 8);
    diameter(h1, 8);
    diameter(h2, 8);
    distance(h1.center(), left, 20);
    distance(h1.center(), top, 30);
    distance(h2.center(), right, 20);
    distance(h2.center(), top, 30);
    // The junction the tool appended: the split point is one vertex shared
    // by both pieces.
    coincident(bottom.end(), l1.start());
    // Added by hand afterwards. The split point is free to slide along the
    // edge until it is dimensioned.
    distance(bottom.start(), bottom.end(), 35);
})

What each primitive becomes

Edge	After the split
line()	Two lines joined at the split point.
arc()	Two arcs around the same center, joined at the split point; each keeps .cw() / .guide(). A second coincident(first.center(), second.center()) keeps them on one circle.
circle()	One arc whose start and end both sit at the split point: arc(P, P, center). Coincident arc ends mean a full turn, so it still draws as the whole circle until you drag one end away from the other.

// an arc split at P
const a1 = arc([40, 0], P, [0, 0]).cw();
const a2 = arc(P, [0, 40], [0, 0]).cw();
coincident(a1.end(), a2.start());
coincident(a1.center(), a2.center());

// a circle split at P: one full-turn arc
const c1 = arc(P, P, [0, 0]);

Constraints on the split edge

Every constraint that referenced the edge is kept where it still makes sense, and the toast names the ones that had to go.

• .end() references move to the second piece; .start() and .center() references stay on the first. distance(l1.start(), l1.end(), 40) becomes distance(l1.start(), l2.end(), 40), so an overall length stays dimensioned.
• On a line, horizontal, vertical, parallel, perpendicular, angle, collinear and fix are copied onto the second piece. A point-on-line coincident, a tangent or a distance to the line goes to whichever piece the constraint touches. equal (length), symmetric and a midpoint of the line are removed.
• On an arc or a circle, both pieces ride one circle, so radius, diameter, concentric, tangent, equal and a point on the circumference stay on the first piece. Only fix is copied; symmetric is removed.
• A .mid() of the edge used by other geometry refuses the split, since the midpoint of the whole edge no longer exists.

What cannot be split

The tool says why in a toast:

• Text, bezier curves and ellipses (ellipses: not yet).
• Points.
• Projected and intersected references.
• Copy and mirror images: split the source edge instead, and the image follows.
• Edges drawn by a loop.
• A click on a vertex rather than the body of the edge.
