Offset

offset() creates a copy of sketch geometry shifted inward or outward by a given distance.

Basic usage​

Inside a sketch, offset() offsets all existing shapes:

import { sketch, offset } from 'fluidcad/core';
import { rect } from 'fluidcad/core';

sketch("xy", () => {
    rect(50)
    offset(5)
})

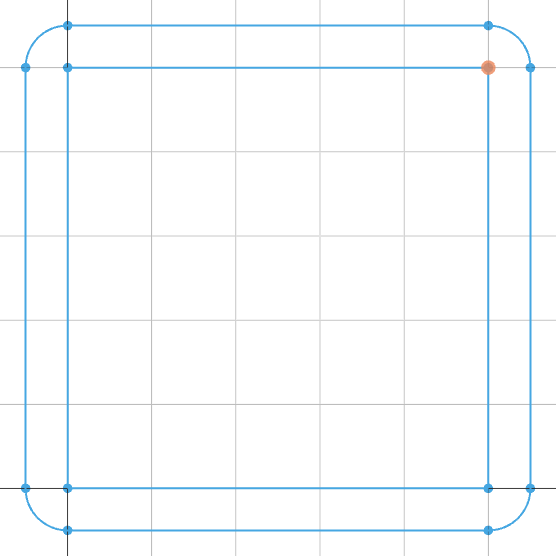

Offset outward

Positive values offset outward, negative values offset inward.

Removing the original​

Pass true as the second argument to remove the original geometry and keep only the offset:

import { sketch, offset } from 'fluidcad/core';
import { rect } from 'fluidcad/core';

sketch("xy", () => {
    rect(100, 60).centered()
    offset(-10, true)
})

Offset inward with removal

Closing an open offset​

Chaining .close() connects the offset back to the original profile with two straight cap edges, producing a closed loop you can extrude or fill:

import { arc, offset, sketch } from "fluidcad/core";

sketch("xy", () => {
    arc([50, 100]);
    offset(10).close()
})

Offset closed against original

For profiles that are already closed (e.g. a circle or a closed rectangle), .close() is a no-op. Combining .close() with removeOriginal=true throws, since there is no original profile left to cap to.

Combining with other shapes​

Offset is useful for creating walls, margins, and clearances:

sketch("xy", () => {
    rect(50)
    circle(30)
    offset(5)                  // both the rect and circle are offset
    circle(14)                 // add another shape after offsetting
})
