Export

FluidCAD supports exporting your model as STEP, STL, or PNG. To export:

  1. Open the Shapes panel, click the three-dot menu on the solid you want to export, and select Export.

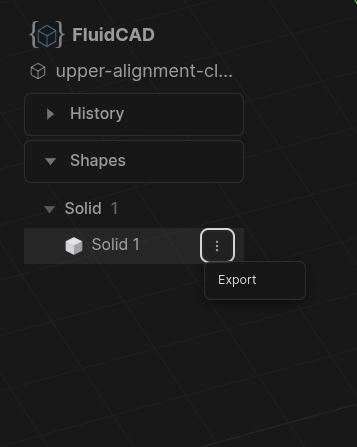

Export menu

  1. In the export dialog, choose your format (STEP, STL, or PNG), toggle color inclusion, and click Export.

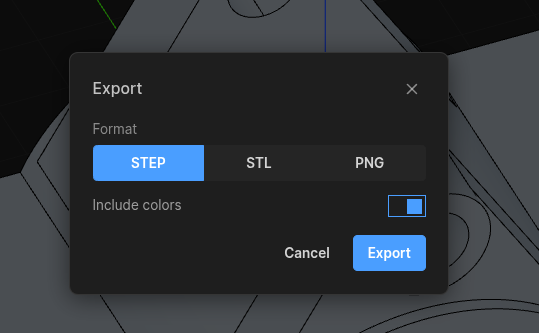

Export dialog

The exported file includes all geometry and color information, and can be opened in any standard CAD tool (Fusion 360, SolidWorks, FreeCAD, etc.).
